If you’re searching for the perfect downdraft paint booth for sale, you’ve come to the right place. Understanding how downdraft airflow revolutionizes automotive and industrial painting is key to making a smart investment. Whether you need a full downdraft booth, pitless system, or a semi-downdraft option, knowing the benefits, customization features like heated air makeup units and digital controls, plus safety certifications, will help you choose the right fit for your shop. Ready to explore what separates top brands from OEMs and get the best value for your budget? Let’s dive in!
What Is a Downdraft Paint Booth?
How Downdraft Airflow Works
A downdraft paint booth uses a vertical airflow pattern, drawing air from the ceiling downward through the workspace and out via floor-level exhaust filters. This design creates a steady, controlled airflow that carries overspray, dust, and contaminants away from the painted surface and operators. Key airflow components include:
| Airflow Component | Function |
|---|---|
| Ceiling intake | Supplies clean, filtered air from above |
| Work area | Controlled environment for spraying |
| Floor exhaust filters | Capture overspray and airborne particles, keeping air clean |
This unidirectional airflow minimizes air turbulence, ensuring a smooth finish by preventing paint particles from drifting back onto surfaces during curing.
Key Benefits for Automotive and Industrial Painting
- Superior Finish Quality: Consistent airflow reduces paint defects caused by dust and overspray.
- Improved Safety: Efficient extraction of flammable vapor and particulates reduces fire risk.
- Environmental Compliance: High-efficiency filtration lowers emissions, meeting strict regulations.
- Enhanced Productivity: Faster drying times and reduced rework improve shop efficiency.
- Versatility: Suitable for automotive, truck, industrial, and furniture painting applications.
Downdraft paint booths are preferred by professional body shops and industries demanding precise environmental control for top-quality paint jobs.
Types of Downdraft Paint Booths for Sale
Full Downdraft Paint Booths

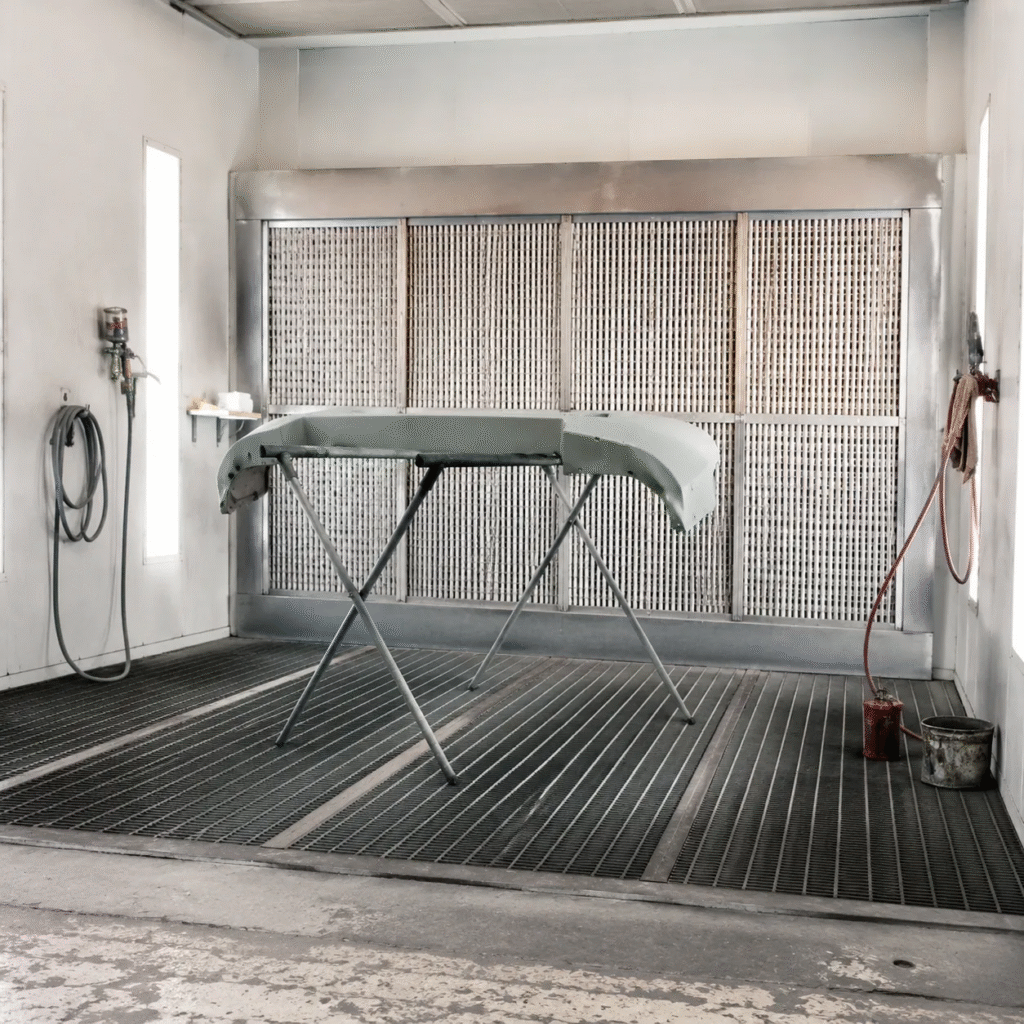

Full downdraft paint booths feature airflow that moves vertically from the ceiling straight down to the floor. This design is highly effective at capturing overspray and airborne contaminants, ensuring a clean working environment and a flawless paint finish. These booths often include grated floors with exhaust systems that pull paint particles downward, reducing dust circulation. They’re ideal for automotive and industrial painting where finish quality is critical. Full downdraft booths are commonly available in factory-direct models with CE certification suitable for global markets.
Semi-Downdraft and Side-Downdraft Options
Semi-downdraft booths combine vertical airflow with side ventilation to optimize paint particle control in spaces where full downdraft booths might be impractical. Side-downdraft booths pull air horizontally across the spray zone, directing overspray toward exhaust fans typically located along one wall or the floor. These variations offer flexibility in shop layout and can fit tighter spaces while still providing efficient ventilation. They’re a popular choice for mid-sized auto body shops and industrial spray applications needing effective dust and overspray control without extensive floor modifications.
Pitless Downdraft Paint Booth Systems
Pitless downdraft booths eliminate the need for pit construction in the floor. They achieve downdraft airflow by incorporating a large plenum underneath the booth floor rather than a recessed pit. This approach reduces installation complexity and cost while maintaining the superior airflow benefits of traditional downdraft designs. Pitless systems are particularly appealing for workshops where pit excavation isn’t feasible. For detailed comparisons and airflow designs of pit vs. pitless setups, industry buyers can explore specialized resources such as the comprehensive guide on downdraft paint booth airflow design.
| Booth Type | Airflow Direction | Installation | Best For |
|---|---|---|---|
| Full Downdraft | Vertical, ceiling to floor | Requires pit or grating | High-end automotive finishes |
| Semi-Downdraft/Side | Combination or horizontal | Flexible, less invasive | Small to mid-size body shops |
| Pitless Downdraft | Vertical via plenum under floor | No pit needed | Shops with floor constraints |
Each downdraft paint booth type is designed to maximize finish quality through effective overspray removal and precise airflow control, matching diverse operational needs and space limitations. For heavy-duty vehicle refinishing, consider the selection of dedicated truck downdraft paint booths engineered specifically for larger applications.
Key Features and Customization Options
Heated Air Makeup Units (AMU) and Direct Drive Systems
Our downdraft paint booths come equipped with advanced heated air makeup units (AMU), designed to maintain consistent temperature and airflow during painting. Choose between highly efficient diesel heating or electric heating options to suit your shop’s energy needs and climate conditions. The direct drive systems ensure smooth, reliable operation of exhaust and circulation fans, optimizing airflow for superior overspray control and finish quality. These features reduce energy consumption while maintaining stable booth pressure and temperature.
Digital Controls and Touchscreen Panels
Modern digital controls with user-friendly touchscreen panels provide precise management of ventilation, heating, and lighting. Operators can easily adjust airflow speeds, temperature settings, and filter alarm thresholds in real-time, ensuring optimal paint curing conditions. These control systems support automation and diagnostic functions, improving efficiency and reducing downtime during high production cycles.
Insulated Construction and Heavy-Duty Material
Our booths feature robust insulated walls made from heavy-gauge galvanized steel, promoting structural strength and thermal retention. This insulation helps minimize heat loss, cutting operational costs while preventing condensation. The durable materials resist corrosion and wear, extending booth longevity under continuous industrial use. Custom options include reinforced framing and soundproofing layers for quieter, safer work environments.
| Feature | Benefit |
|---|---|
| Heated Air Makeup Units (AMU) | Stable temperature and airflow |
| Direct Drive Systems | Reliable fan operation and airflow |
| Digital Touchscreen Controls | Easy, precise environmental control |
| Heavy-Gauge Galvanized Steel | Durability & corrosion resistance |
| Insulated Booth Walls | Energy efficiency & condensation control |
Together, these key features and customizable options ensure the downdraft paint booth delivers consistent performance, safety, and energy efficiency for diverse automotive and industrial applications. For detailed information on configurations, visit our comprehensive automotive paint booth guide with types and features.
Choosing the Right Size for Your Shop
Automotive and Car Paint Booths
Selecting the right size for automotive and car paint booths depends on the typical vehicle dimensions and workflow in your shop. Standard downdraft paint booths commonly come in 6m and 7m lengths, ideal for passenger cars and light trucks. These sizes provide enough space for precise spraying, optimal airflow control, and ease of movement for technicians. Choosing an appropriately sized booth ensures maximum finish quality without wasting valuable floor space.
Large Truck and Commercial Vehicle Spray Booths
For truck and commercial vehicle painting, larger booth dimensions are essential to accommodate oversized vehicles. Booths extending to 8m or custom larger sizes offer the clearance needed for high-production environments. Heavy-duty construction and robust ventilation systems in these larger downdraft spray booths ensure consistent airflow, overspray control, and operator safety during long cycles typical of industrial applications.
Custom and Mid-Size Dimensions
Every operation has unique requirements; mid-size and custom downdraft paint booth configurations bridge gaps between small auto bays and full-sized truck booths. Custom sizing allows better integration into existing shop layouts and optimizes energy usage by avoiding oversized spaces. Personalized features like insulated walls, upgraded heating systems, or tailored digital controls often accompany these custom dimensions to raise efficiency and paint finish quality. You can explore a wide range of custom options when considering direct OEM manufacturers known for flexible booth sizes and specifications.
For more detailed sizing options and production solutions, visit the guide on types of car spray booths and their features.
What to Look for When Buying a Downdraft Paint Booth
Safety Compliance and ETL Certifications
When investing in a downdraft paint booth, safety compliance should be the top priority. Look specifically for ETL-certified booths that meet rigorous electrical and fire safety standards. These certifications ensure the equipment is built to protect operators and prevent hazardous conditions related to flammable paint vapors and overspray. In addition, booths with CE certification demonstrate compliance with global safety and environmental requirements, making them suitable for import across Europe, the US, and other regions. Choosing a booth that adheres to these certifications reduces liability risks and ensures your facility passes inspections without delays.
Comparing Top Brands vs. Direct OEM Manufacturers
Purchasing directly from OEM manufacturers offers clear advantages over top brand resellers. OEM suppliers provide factory-direct pricing by cutting out middlemen, allowing buyers to access competitive wholesale prices without sacrificing quality. Direct OEMs are also much more flexible when it comes to customization — from booth size to heating systems and airflow design — letting you tailor the paint booth to your exact industrial or automotive production needs. While top brands may carry the prestige of established names, their higher markup can add to your total investment without proportional benefits in performance or service. Partnering with a trusted OEM often ensures quicker lead times and personalized technical support, crucial for high-production environments.
Wholesale Pricing and Budgeting for Installation
Budgeting for a downdraft paint booth involves more than just the unit’s price. Factory-direct offers typically bring the price down substantially but consider shipping logistics, customs duties, and installation costs in your total budget. For example, transportation for single units shipped in a 20-foot container usually ranges from $6,500 to $15,000 depending on destination and local customs fees. Ordering multiple booths in one 40-foot container significantly reduces per-unit freight cost, making wholesale purchases highly cost-effective. Installation expenses vary based on the complexity of booth integration, heating systems (diesel or electric), and ventilation setup. Planning for professional installation and compliance upgrades ensures reliable operation and long-term safety. For detailed installation best practices, refer to specialized guides on paint booth setup and airflow design to optimize your investment.
Explore more about choosing the right automotive paint booth and technical considerations in our comprehensive automotive paint booth guide.
