The ATK-007C-E is an efficient 7m spray workshop system integrating a main booth, a dedicated dry grinding preparation room, and a professional paint mixing room. Featuring 30KW electric heating and triple-stage filtration, it separates painting, sanding, and color mixing processes, designed to enhance workflow efficiency and finish quality for auto repair shops and body centers.
| Minimum Order Quantity : | 1pcs | Price : | To be negotiated |
| Packaging Details : | 40GPor20GP/unit | Delivery Time : | 15days To be negotiated |
| Payment Terms : | L/C, T/T | Supply Ability : | 50 Unit/Units per Month Industrial Spray Booth bus spray booth |
| Place of Origin: | Jiangsu, China | Brand Name: | Autoke |
| Certification: | CE | Model Number: | ATK-007C-E |
ATK-007C-E | 7m Electric Spray Workshop Complete Solution: Modular Design, Streamlined Workflow
The ATK-007C-E is an integrated spray workshop solution designed for small to medium-sized auto repair shops, body centers, and industrial coating clients who seek efficient, professional workflows. It scientifically separates the core spraying area, pre-treatment area, and material preparation area, incorporating all essential functions of a professional coating workshop within a compact footprint.
Core Components & Advantages:

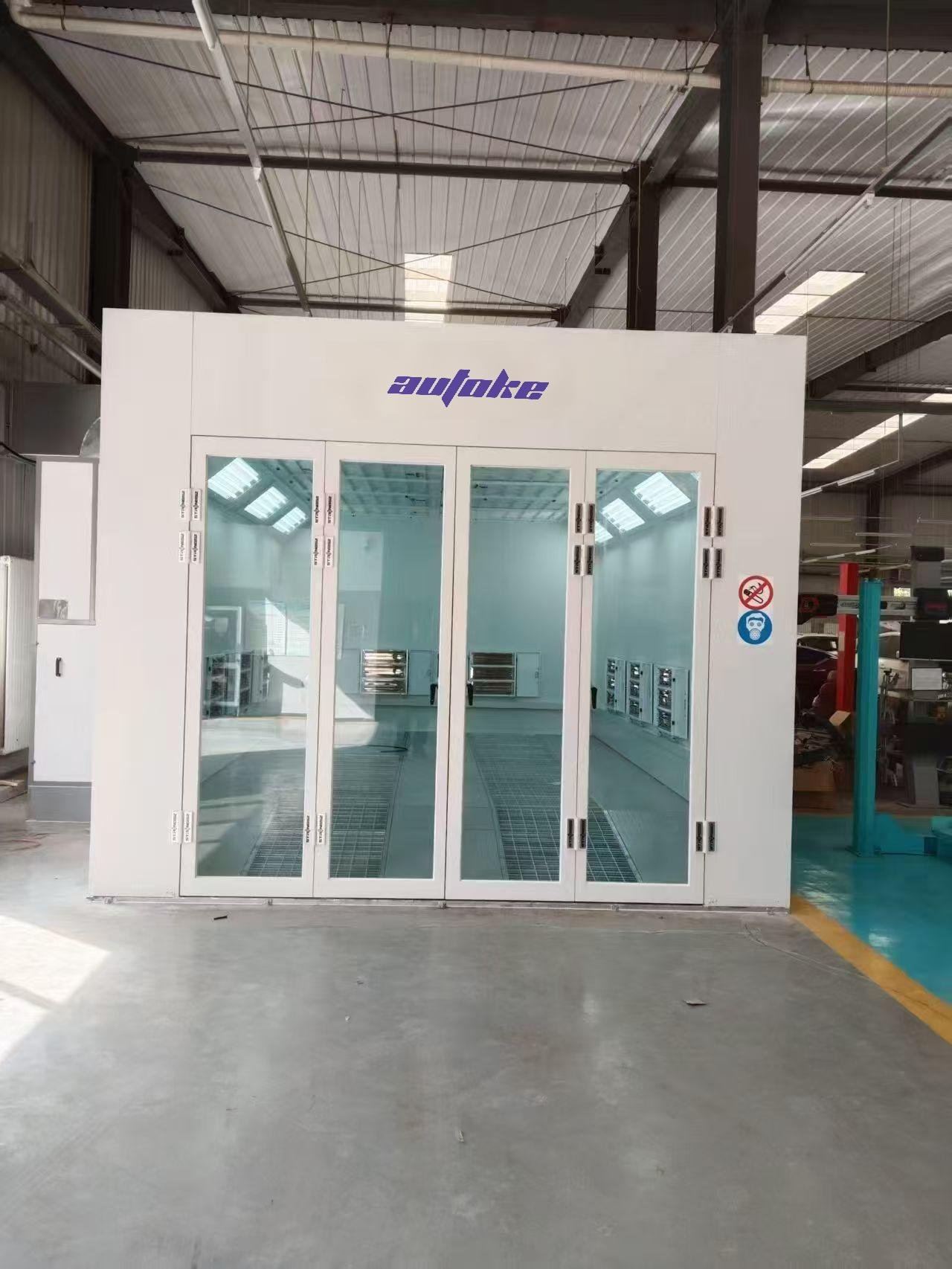

7m Main Spray Booth (Standard Electric)
Efficient Heating: 10 sets of halogen infrared baking lamps (total 30KW) heat the booth to 40°C in 5-8 minutes (max 80°C) for rapid, uniform paint curing.
Clean Environment: 2×4KW supply fans (30,000 m³/h) + 1×5.5KW exhaust fan (19,000 m³/h) combined with a 3-stage filtration system (primary, ceiling 98%, floor) ensure a dust-free spraying environment.
Robust Structure: Double-layer fire-resistant color steel rock wool walls, galvanized steel grate basement with auxiliary legs supports over 5 tons.
Independent Preparation Room (Dry Sanding Area)
Dust Control: Built-in dry grinding dust extraction filter box (3000×1000×2000mm) with a dedicated 7.5KW exhaust fan effectively captures sanding dust, protecting the main booth’s cleanliness and worker health.
Isolated Operation: Completely isolated from the painting zone to prevent dust contamination of wet paint or the clean spray environment.
Professional Paint Mixing Room
Accurate Color Matching: An enclosed space with a professional mixing cabinet ensures precise paint formulation and prevents solvent vapors from spreading.
Process Optimization: Isolates and前置 the color preparation step, reducing non-spraying time inside the main booth and increasing turnover.
Core Value of Integrated Design:
Streamlined Workflow, Increased Efficiency: Three independent zones enable a “prepare-mix-spray” pipeline, significantly reducing vehicle wait and move times.
Environmental Compliance & Health: Segregated collection and treatment of dust and VOCs improve overall workshop conditions and facilitate compliance.
Space-Saving & Cost-Effective: More compact than three separate units, with easier installation and potentially lower total cost of ownership.
Flexible Options: Main booth available with diesel heating (model ATK-007C-D) to suit regional energy costs and availability.
Standard Specifications Overview:
Model: ATK-007C-E
Main Booth Internal: 6900×3900×2650mm
Prep Room Internal: 6900×3900×2650mm
Mix Room Internal: 2900×3900×3000mm
Main Booth Heating: Electric (220V/380V, 50Hz)
Main Booth Total Power: 38 KW
Ideal For:
Medium-sized auto repair shops, specialized body and paint centers, fleet maintenance facilities, small industrial equipment coating lines, and any user looking to upgrade to a professional, standardized painting process with a sensible investment.
The ATK-007C-E is more than just equipment—it’s a redefinition of the professional painting workflow. Contact our technical team for detailed layout planning, heating option comparisons, or a customized proposal.
