The ATK-009D is engineered for painting large vehicles and workpieces. With its expansive 9m interior, powerful ventilation system (total airflow 34,000 m³/h), and efficient diesel heating, it ensures rapid heating and effective overspray removal. It is the ideal solution for buses, trucks, and large industrial equipment coating.
| Minimum Order Quantity : | 1pcs | Price : | To be negotiated |
| Packaging Details : | 40GPor20GP/unit | Delivery Time : | 15days To be negotiated |
| Payment Terms : | L/C, T/T | Supply Ability : | 50 Unit/Units per Month Industrial Spray Booth bus spray booth |
| Place of Origin: | Jiangsu, China | Brand Name: | Autoke |
| Certification: | CE | Model Number: | ATK-009D |

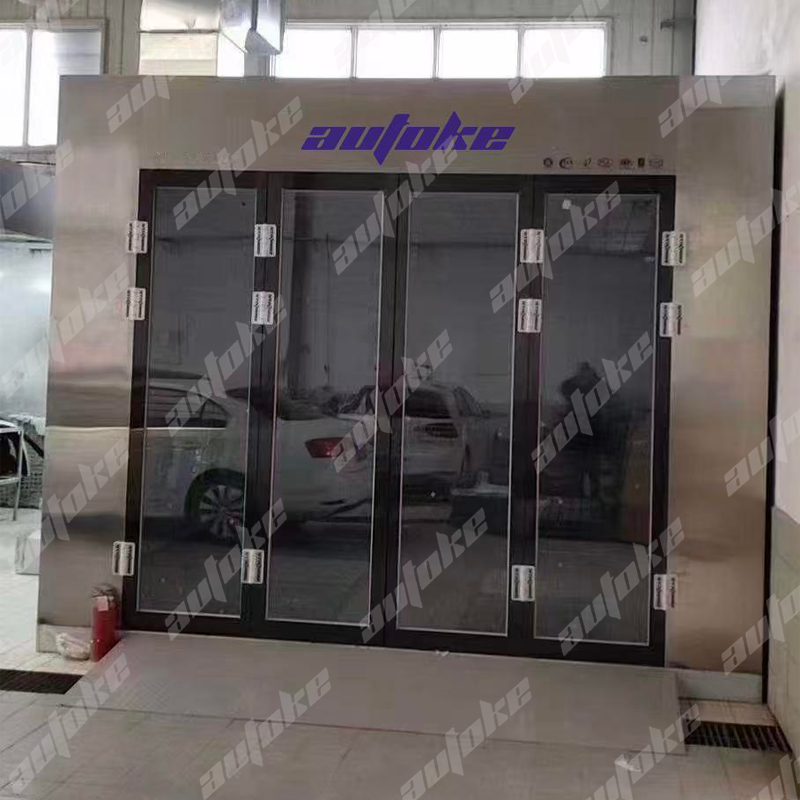

ATK-009D | 9m Large Diesel Heating Spray Booth: A Powerful Workspace Built for Commercial Vehicles & Heavy-Duty Industrial Coating
The ATK-009D is our flagship spray booth designed to meet the demands of painting large, oversized workpieces. It breaks through spatial limitations with an 8.9m internal length and is comprehensively upgraded in ventilation power and structural strength. It aims to provide a professional, high-efficiency coating environment for buses, freight trucks, special vehicles, and large industrial equipment.
Core Advantages & Technical Specifications:
Oversized Workspace for Heavy-Duty Needs:

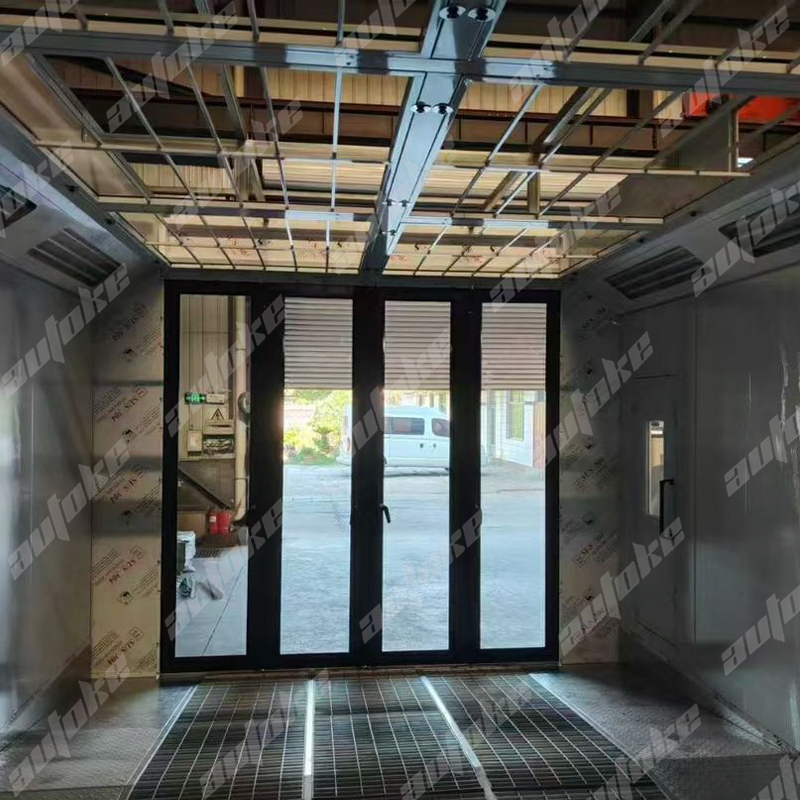

A spacious internal net dimension of 8900×3900×2950mm provides ample room for maneuvering and operating large vehicles.
The reinforced basement, assembled from galvanized steel sheets and square tubes, includes four additional auxiliary legs, ensuring a load-bearing capacity of at least 5 tons for solid reliability.
Powerful Ventilation for a Superior Environment:
Core Powerhouse: Equipped with 2 high-power 7.5KW double-intake centrifugal fans (total supply airflow: 34,000 m³/h) and 1 high-performance 11KW centrifugal exhaust fan (total exhaust: 30,000 m³/h). This far exceeds standard models, instantly and forcefully removing large volumes of overspray and solvent vapors.
Flexible Layout: The rock wool insulated fan cabinet (1.1*2.2m) can be flexibly placed on the left, right, or back side according to site conditions.
Efficient Diesel Heating for Various Conditions:
Features a BAITO diesel burner (gas option available) for rapid heating, reaching 40°C within 5-8 minutes with a maximum baking temperature of 80°C. Ideal for high-humidity environments or low-temperature seasons, offering economical operating costs.
Exceptional Structure & Filtration:
Robust Walls: 75mm thick double-layer fire-resistant color steel rock wool panels (density: 100KG/m³) provide excellent thermal insulation, soundproofing, and fire resistance.
Top Load Bearing: Utilizes 4*8规格 steel square tubes as the main load-bearing beam for structural stability.
3-Stage Precision Filtration: Primary (>10μm), high-efficiency ceiling filter (>4μm, efficiency >98%), and double-layer floor filters (multi-layer fiberglass) ensure a clean, dust-free painting surface.
Comprehensive Lighting & Intelligent Control:
Professional Lighting: 40 pieces of 18W 45° angle LED ceiling lights and 12 pieces of 48W side wall LED lights provide uniform, shadow-free illumination.
Smart Control: Integrated control panel with functions for lighting, spray mode, bake mode, temperature/time setting, and emergency stop for intuitive operation.
Standard Specifications Overview:
Model: ATK-009D
External/Internal Dimensions: 9000×4000×3500mm / 8900×3900×2950mm
Heating Type: Diesel/Gas Heating
Ventilation Power: Supply 2×7.5KW + Exhaust 1×11KW
Packaging & Shipping: Approx. 19 CBM, 3500kg, recommended for single-unit shipment in a 20GP container.
Target Applications:
Maintenance centers for public transport (buses, coaches), body shops for logistics fleets (heavy-duty trucks, trailers), manufacturing and refurbishment plants for construction machinery (excavators, loaders), agricultural equipment manufacturers, and coating operations for ship components and large industrial equipment housings.
The ATK-009D represents our deep understanding and technical expertise in large-scale painting applications. For more detailed configuration options, installation planning, or to obtain a customized proposal and quotation for your specific project, please contact our professional technical consultants.
