High quality double construction insulation EPS colorful steel skin
panel. Fire resistant wall 10 cm, two layers 0.5mm steel cover with fire
resistant thermal insulation materials in.
1. Plate type pressing convex platform, made by high quality galvanized steel sheet and square tubes assembling, height is 300mm;
2. Equip two rows flat steel grilles (Galvanized) made by flat bar and round steel, 30*4mm
3. With three rows metal non-slip grill floors width 53cm, 90cm and 53cm
4. With 2 rows walking floors with 90cm on each size.
Four sheet metal front door total 3000×2750mm(L×W),equipped with Handle & Lock;
side safety door ：60*180cm

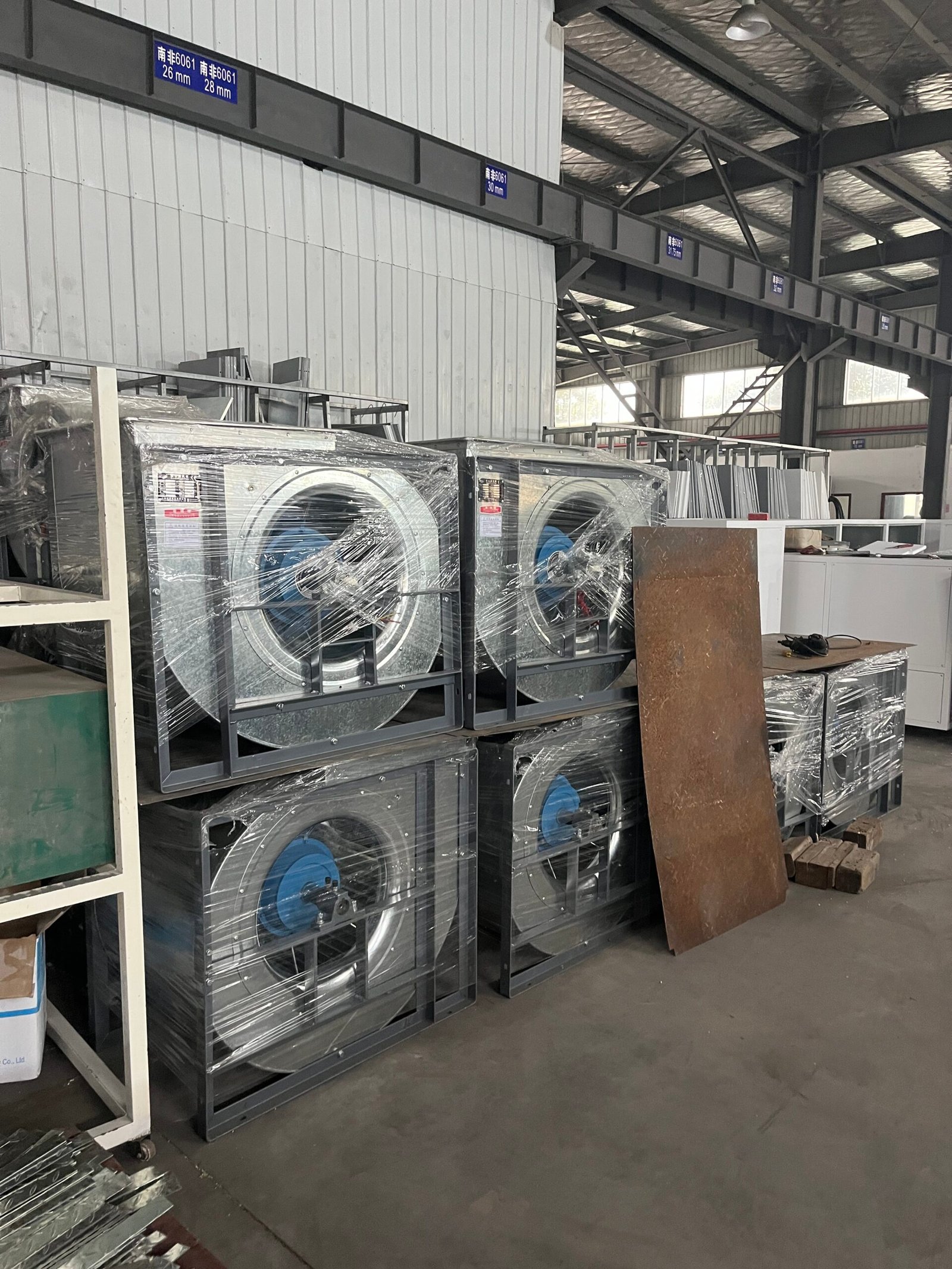

Luxury fan box
2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m3/h
Outlet fans:
1×5.5kw YDW outlet centrifugal fan, total air capacity: 19000m3/h
Intake air from side upper, adopt powder quadrate steel frame, exhaust duct made by high quality galvanized steel and flange. (Rock wool cabinet)
Cabinet dimension: 1*2.2m, can put in left/right/back side of booth.
Elbow: 90º *1unit
Electric Heating (220V/380V)
Industrial-grade stainless steel heating rod with fins.
Heated to 150 degrees Celsius, 144kW, 144 heating rods.
Made by galvanized square pipe, with supporting and angle iron connected by screw.
The plenum made by galvanized steel, powder-coated on the surface. The roof filter support frame made by galvanized square tubes, powder-coated on the surface.
Primary Filter
The primary filter can capture granules larger than 10μm, filtering rate > 90%.
Ceiling Filter (White)
Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%.
Floor Filter (Blue)
Multi-layer fiberglass filter, filtering rate＞90%

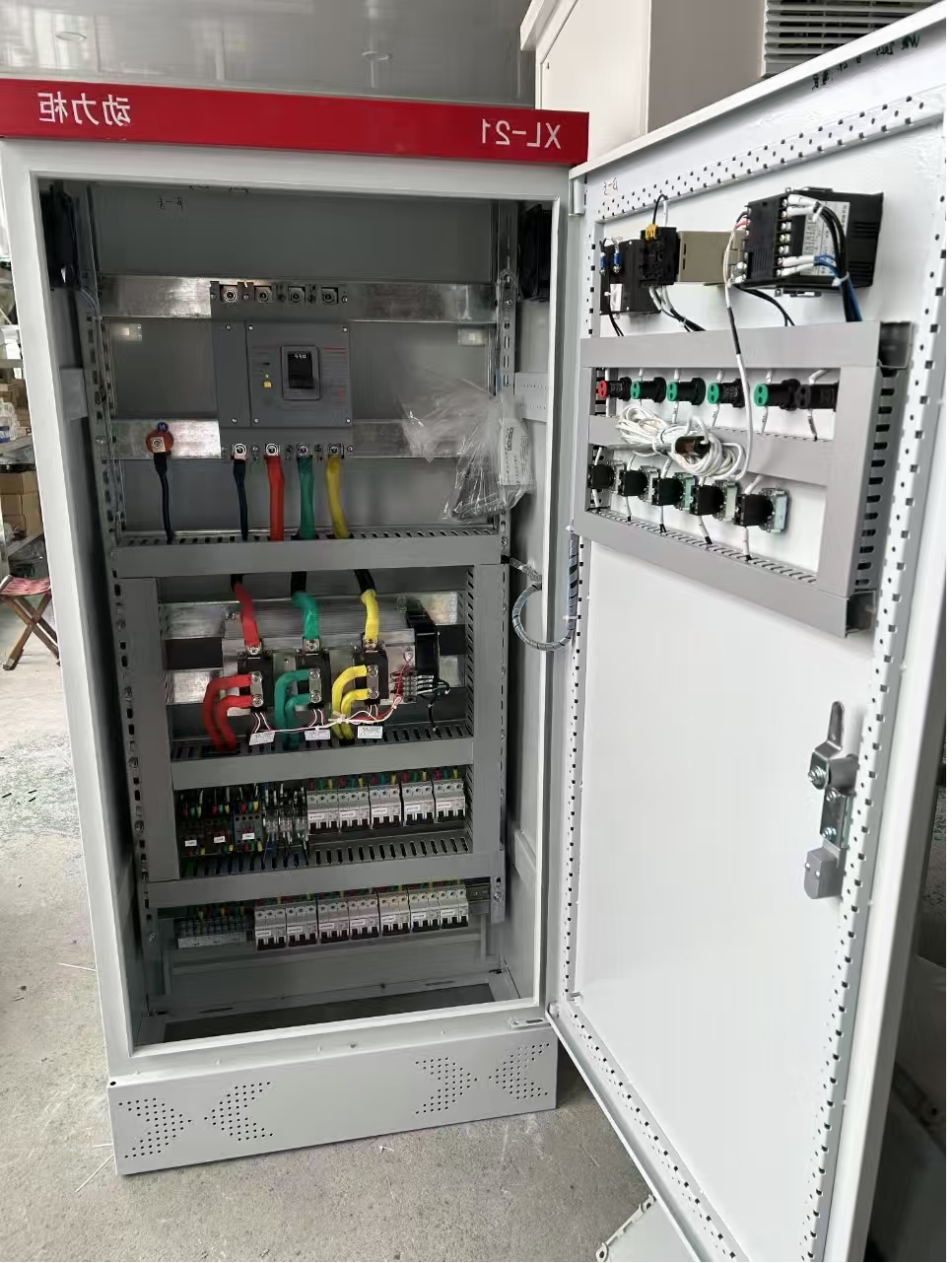

Intelligent controlling system,Painting, Barkin, baking, temperature controller, time setting, emergency stop.
Solid state relay for electric control, the heating curve can be adjusted
Voltage/Frequency
220V/380V, 50Hz
