The ATK-7000-DH-STD is a 7-meter standard diesel spray booth designed for automotive repair and industrial painting. Equipped with a RIELLO G20 diesel heating system for rapid warm-up within 5-8 minutes, triple-stage high-efficiency filtration, and intelligent controls, it features robust construction to provide a clean, energy-saving, and efficient painting environment.
| Minimum Order Quantity : | 1pcs | Price : | To be negotiated |
| Packaging Details : | 40GPor20GP/unit | Delivery Time : | 15days To be negotiated |
| Payment Terms : | L/C, T/T | Supply Ability : | 50 Unit/Units per Month Industrial Spray Booth bus spray booth |
| Place of Origin: | Jiangsu, China | Brand Name: | Autoke |
| Certification: | CE | Model Number:ATK-7000-DH-STD |
ATK-7000-DH-STD |

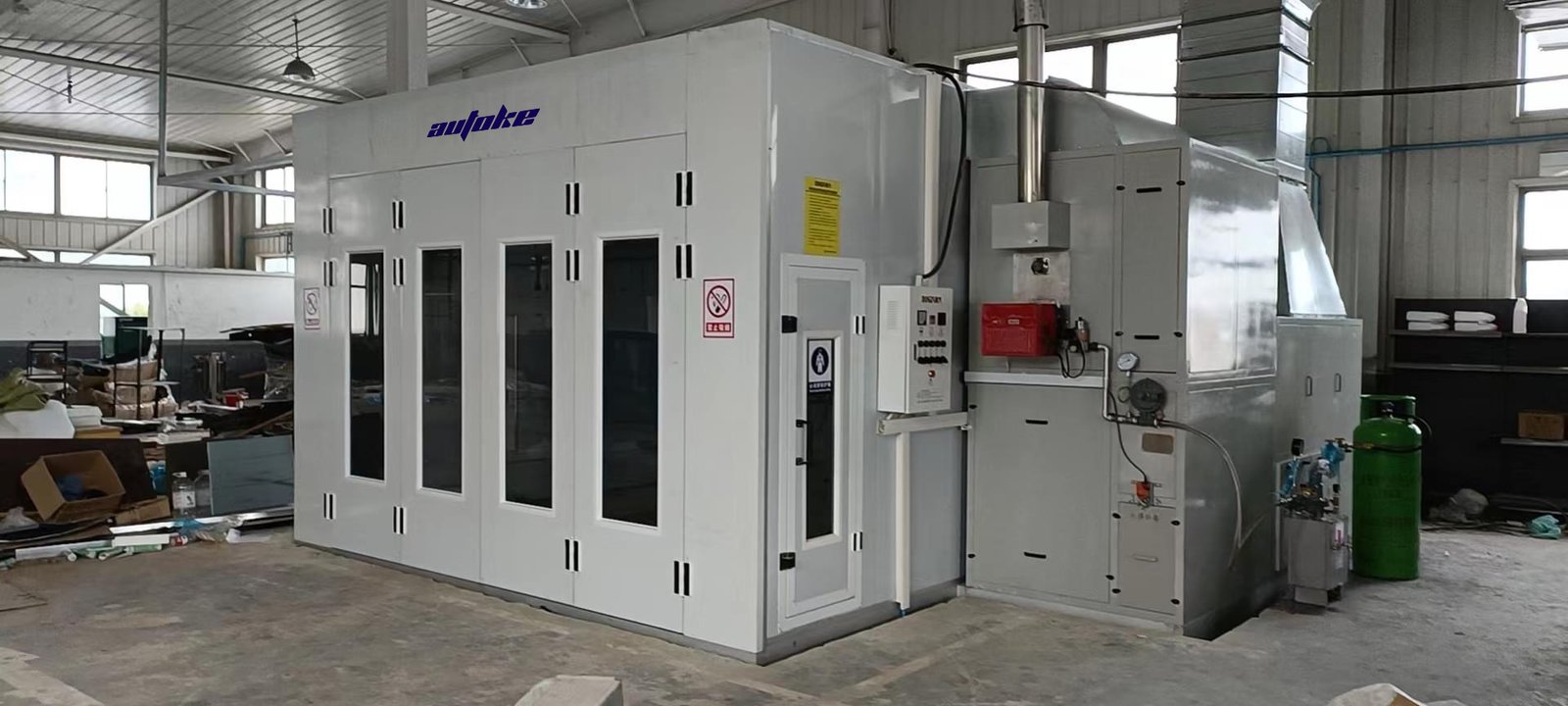

ATK-7000-DH-STD 7m Standard Diesel-Heated Spray Booth
This product is a well-structured and reliably performing standard diesel spray booth, designed for automotive repair, bodywork painting, and general industrial coating applications. It integrates an efficient diesel heating system, powerful ventilation, intelligent control, and multi-stage filtration to deliver a dependable, energy-saving, and environmentally considerate painting solution.
Core Advantages:
🔥 High-Efficiency Diesel Heating System
Utilizes a RIELLO G20 diesel burner for fast and uniform heating, reaching 40°C within 5-8 minutes. Maximum baking temperature: 80°C, suitable for various processes like painting and curing.
💨 Powerful Ventilation & Airflow
Configured with 2×4KW double-intake centrifugal fans providing a total air supply of 30,000 m³/h, paired with a 5.5KW high-efficiency exhaust fan (19,000 m³/h). Ensures stable airflow and rapid removal of paint mist within the booth.
🌫️ Three-Stage Air Filtration System
Includes a primary filter (>10μm, >90% efficiency), high-efficiency ceiling filter (>4μm, >98% efficiency), and multi-layer fiberglass floor filter (>90% efficiency) to ensure a clean working environment and enhance finish quality.
🏗️ Robust & Durable Construction
Walls are built with double-layer color steel fire-resistant insulated panels filled with high-density rock wool (100kg/m³). The roof is made of galvanized steel sheet. The floor is a 300mm high raised platform constructed from galvanized steel sheets with anti-rust galvanized steel grilles, supporting over 5 tons.
🚪 Wide-Access Door Design
Three front doors with a total width of 3000mm, fitted with 5mm high-temperature resistant glass, facilitate easy vehicle access and improve operational convenience and workflow efficiency.
📟 Intelligent Integrated Control
The control panel integrates painting, baking, timer, temperature control, lighting, and emergency stop functions for intuitive operation and easy management, enhancing job safety and consistency.
💡 Professional Lighting System
24×18W LED ceiling lights and 8×48W side wall lights provide uniform, shadow-free illumination, ensuring clear visibility for detailed painting work.
Main Technical Specifications:
External Dimensions: 7000×4000×3350 mm
Internal Dimensions: 6900×3900×2650 mm
Heating Method: Diesel Heating (RIELLO G20)
Total Power: 15 KW (Diesel Heating Version)
Voltage/Frequency: 220V/380V, 50Hz
Packing Volume: Approx. 19 CBM/set, Weight ~3500kg
Ideal Applications:
Comprehensive automotive repair shops and quick-service centers
Small to medium-sized body shops and vehicle restoration workstations
Painting for buses, trucks, and special-purpose vehicles
Coating of industrial equipment and metal components
We offer flexible customization in color, configuration, and layout to provide tailored solutions based on your specific site and process requirements.
Contact our technical team for detailed specifications, configuration advice, and a personalized quotation.
