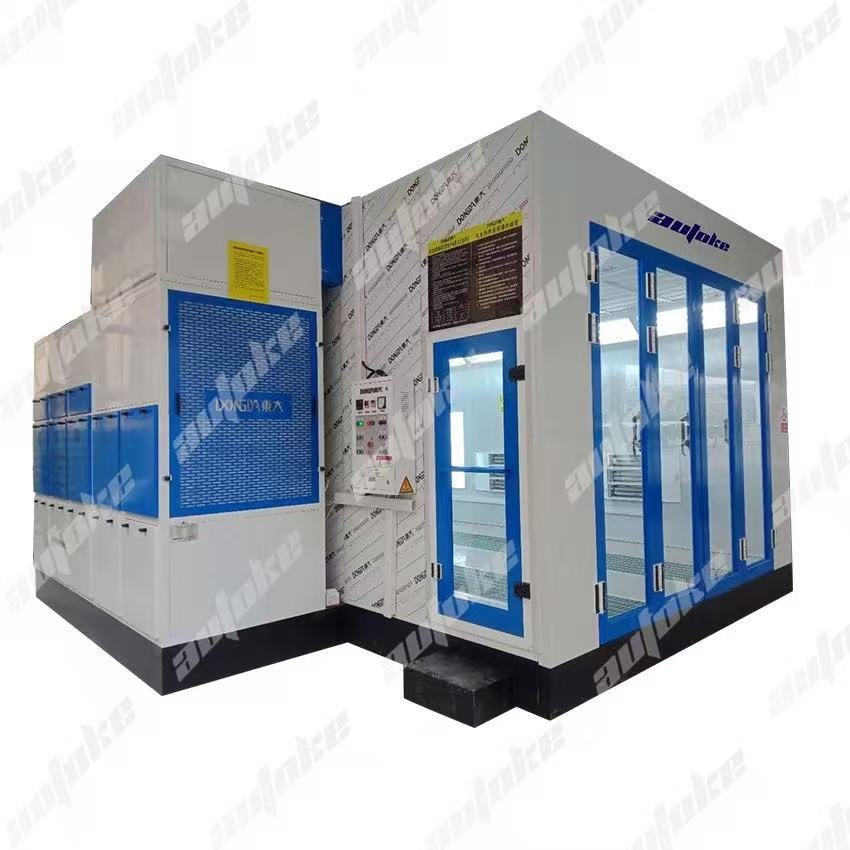

ATK-7000-DH-PRO 7m Luxury Diesel-Heated Spray Booth

This product is a robust and high-performing professional-grade diesel spray booth suitable for automotive repair centers, professional body shops, and industrial coating production lines. It integrates an efficient RIELLO G20 diesel heating system with powerful ventilation and precise air filtration to deliver a reliable, energy-saving, and environmentally considerate painting solution, ideal for medium to high-volume continuous operations.

Core Features & Advantages:

🔥 High-Efficiency Diesel Heating System

• Equipped with a RIELLO G20 diesel burner for fast and stable heating, reaching 40°C within 5–8 minutes and a maximum baking temperature of 80°C.

• Suitable for various painting and curing processes, with strong fuel adaptability and economical operating costs.

💨 Powerful Ventilation & Airflow

• Air Supply: 2×4KW double-intake centrifugal fans provide a total air supply of 30,000 m³/h, ensuring充足 and uniform airflow within the booth.

• Exhaust System: A 1×5.5KW high-efficiency centrifugal exhaust fan removes paint mist and volatiles at 19,000 m³/h, maintaining a safe working environment.

🌫️ Three-Stage Precision Air Filtration

• Primary Filter: Captures particles >10μm with >90% efficiency.

• High-Efficiency Ceiling Filter (White): Filters particles >4μm with >98% efficiency, ensuring clean incoming air.

• Floor Filter (Blue): Multi-layer fiberglass structure with >90% filtration efficiency, effectively collecting overspray.

• Comprehensively ensures a clean painting environment and enhances finish quality.

🏗️ Industrial-Grade Construction

• Walls: Double-layer color steel fire-resistant insulated panels (filled with high-density 100kg/m³ rock wool) for excellent thermal insulation, soundproofing, and fire resistance.

• Floor: 300mm high raised platform made of galvanized steel sheets with galvanized steel grilles and walkways. Overall load capacity ≥5 tons for durability.

• Fan Box: Constructed from 1mm galvanized sheet with internal square tube reinforcement and external spray coating for structural stability.

🚪 Wide-Access Doors for Easy Entry/Exit

• Three front doors with a total width of 3000mm, fitted with 5mm high-temperature resistant glass for smooth access of medium to large vehicles and components.

• A side safety door (60×180cm) is included for quick personnel access and emergency operations.

📟 Intelligent Integrated Control System

• Integrates painting, baking, timer, temperature control, lighting, and emergency stop functions.

• Features a clear, intuitive interface that supports standardized process management, improving operational efficiency and safety.

💡 Professional Lighting System

• 24×18W LED ceiling lights (mounted at a 45° angle) and 8×48W side wall LED lights provide uniform, shadow-free, high-brightness illumination for clear visibility during detailed painting work.

Main Technical Specifications

• External Dimensions: 7000 × 4000 × 3350 mm

• Internal Dimensions: 6900 × 3900 × 2650 mm

• Heating Method: Diesel (RIELLO G20)

• Total Power: 15 KW (Diesel Heating Version)

• Voltage/Frequency: 220V / 380V, 50Hz

• Packing Volume: Approx. 19 CBM/set, Weight ~3500 kg

• Container Recommendation: 1 set fits in a 20GP container; 3 sets fit in a 40HQ container

Ideal Applications

• Automotive 4S shops, comprehensive repair centers, and professional body & paint service centers

• Body painting for buses, trucks, construction machinery, and other large vehicles

• Protective and decorative coating for industrial metal structures and equipment housings

• Painting production lines with high requirements for heating efficiency and environmental cleanliness

We offer flexible customization in color, partial configurations, and functional modules, and can provide on-site layout planning and installation guidance services.

Contact our technical team for detailed technical documentation, customized configuration proposals, and personalized quotation support.
