Spray Booth Installation Manual
Professional installation guidance for Autoke automotive paint booths, ensuring safety, performance, and long-term reliability.
Overview
This installation manual provides a step-by-step guide for installing Autoke spray booths. It covers site preparation, structural assembly, airflow system installation, electrical setup, and commissioning.
Applicable for automotive paint booths, truck paint booths, and customized spray booth solutions. Installation should be carried out by qualified professionals.
Pre-installation Preparation
- Site Requirements
- Foundation & Floor
- Utilities Preparation
Simple installation process for car spray and baking paint booths

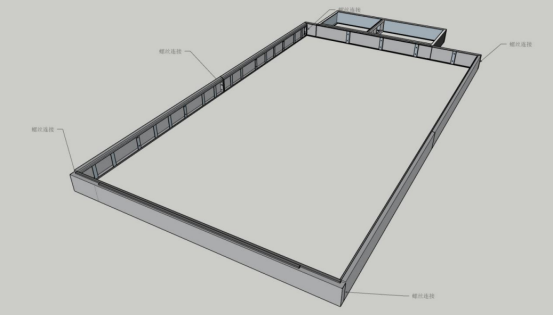

Raised Base installation
Apron for basement
To measure two cross corners, square the base and make them equal.
To make sure the base is level well
Cabinet on back.
Apron for basement
Diamond Plates

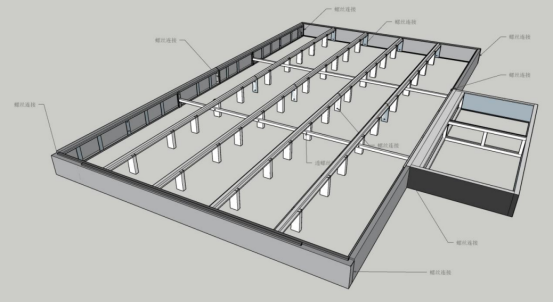

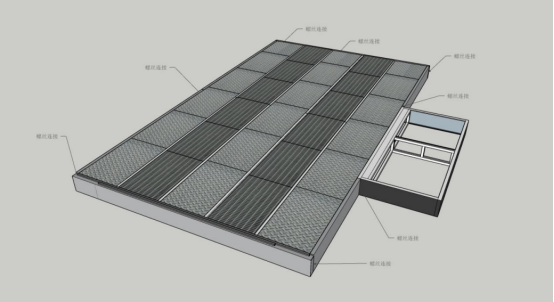

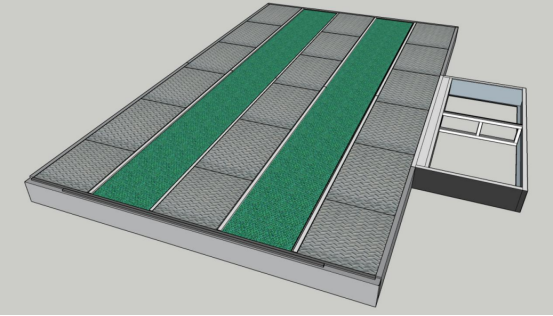

Set up the Floor Filters Holding Panel, then lay the Floor Filters.
Floor Grid

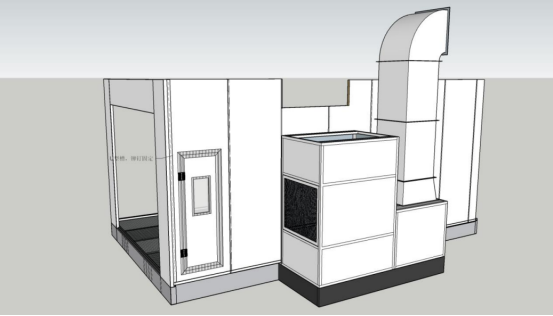

Install the building
Install Main door, Upper kan, and U-channel on the base frame in sequence
To rivet the U-channel on the base frame every 50-70cm and keep the channel clean

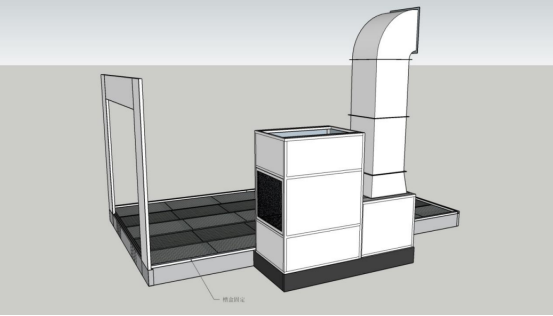

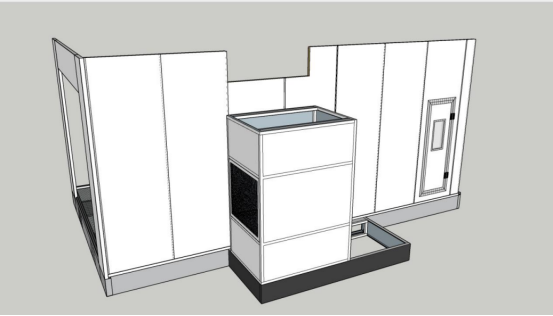

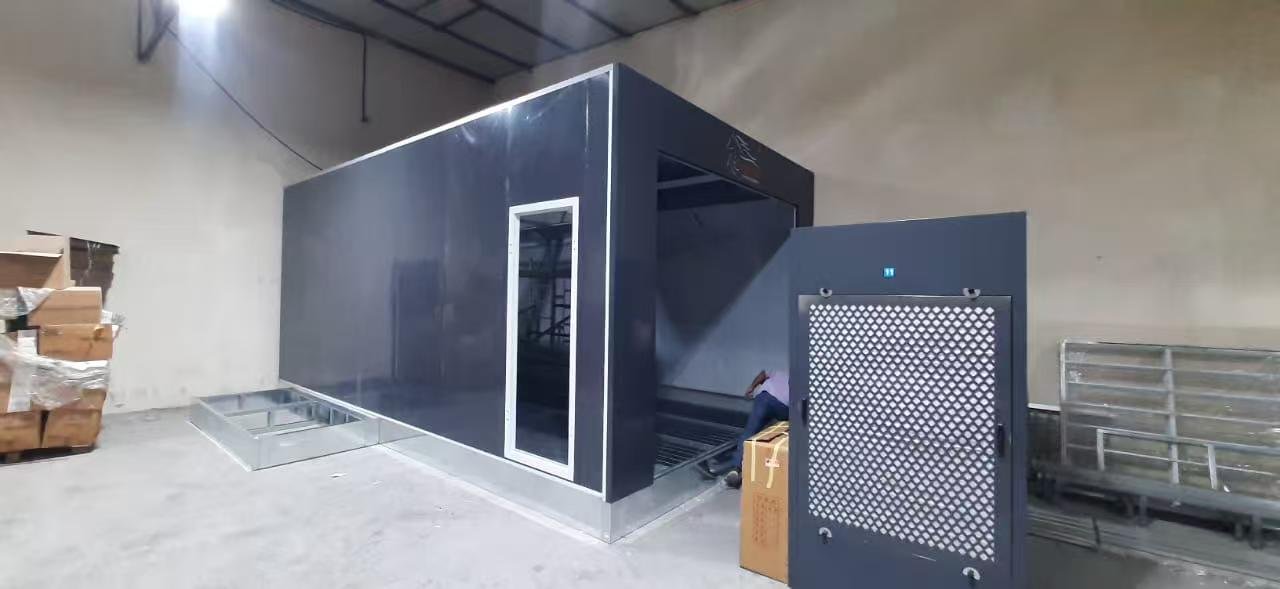

Install Intake cabinet, Exhausting Canbinet, Duct in sequence
Install U-channel on the Main door, Personal door or Change of installation position

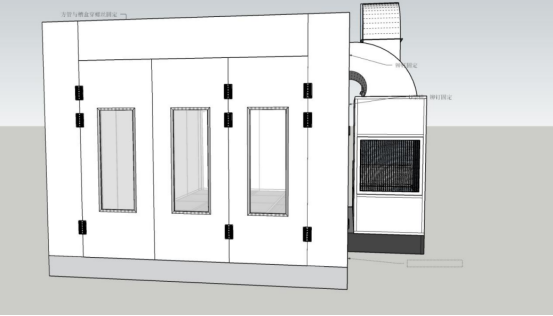

Plug in the wall panel and fix it well, Cutting wall panels on site according to site conditions.
Install in sequence:
To rivet the U-channel on the wall panels and keep the channel clean
Intake windows U channel

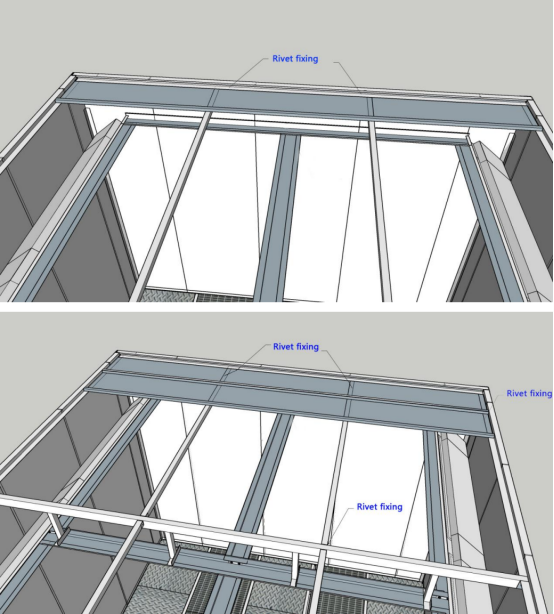

Roof beams to support roof panels.
Upper cover plate 1
Upper cover plate 2

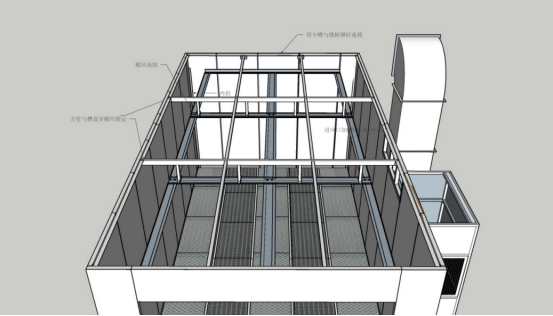

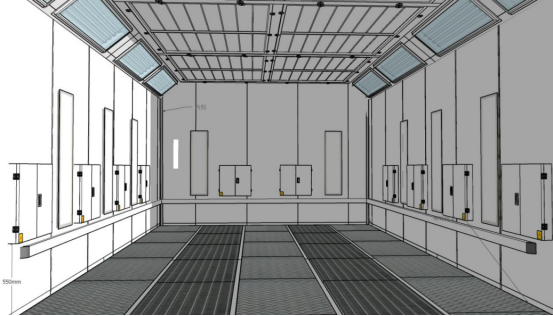

Ceiling Assembly Drawing

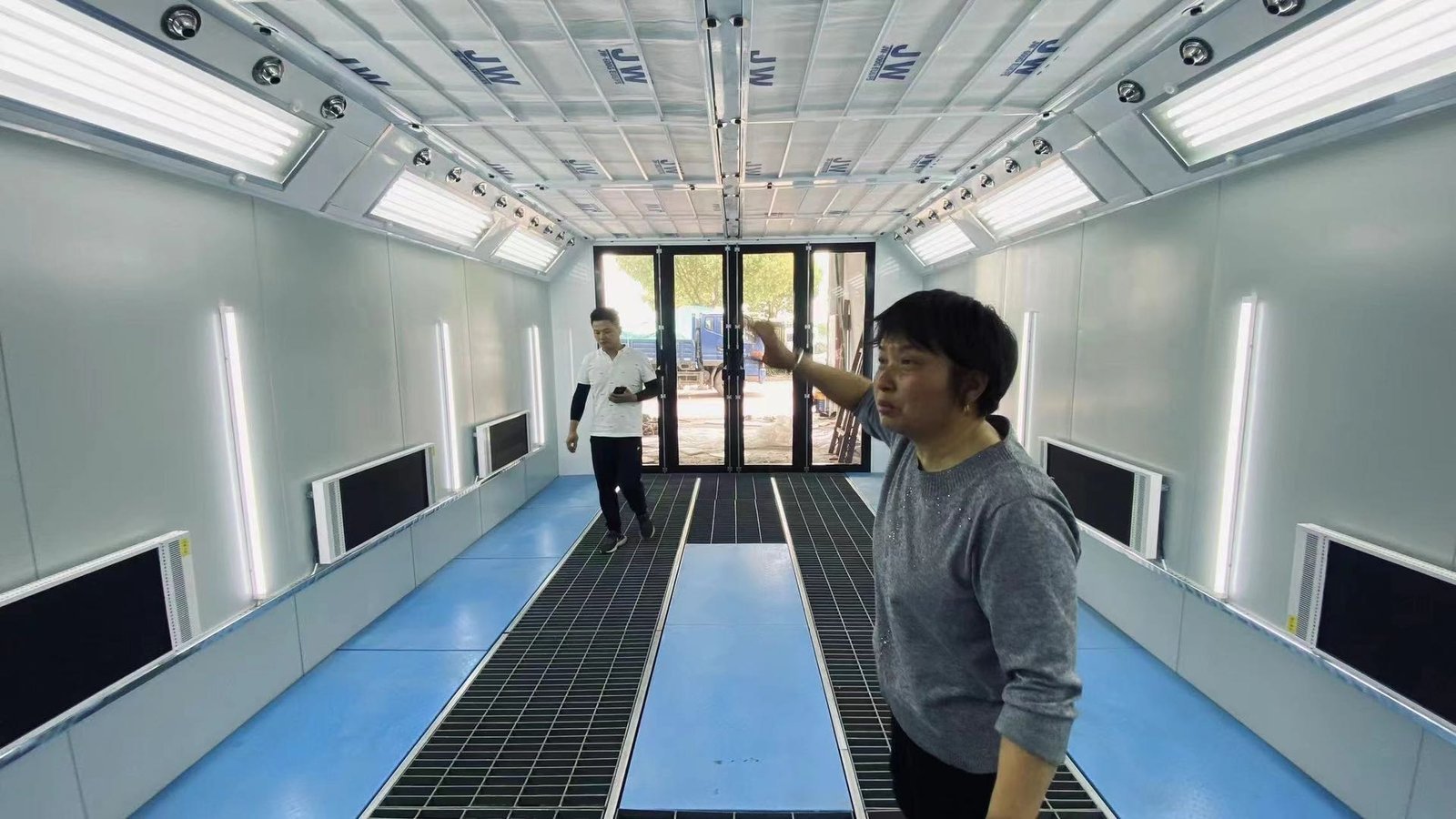

Lighting Fixture
Make sure the angle strip being on the right position. Sealants needed.

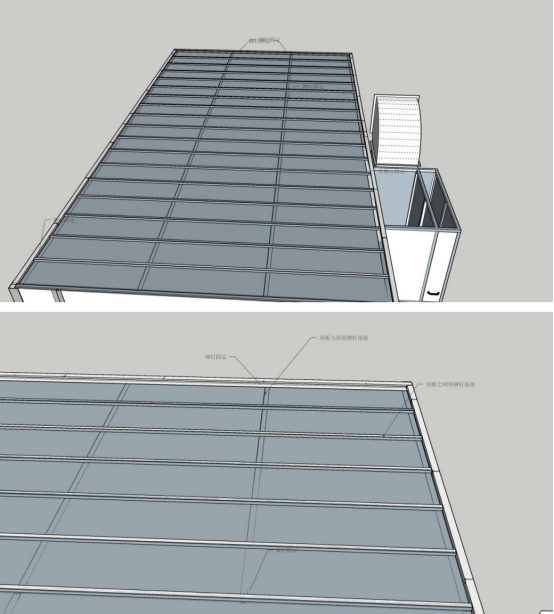

Roof Panels assembly drawing
Lighting Fixture
Make sure the angle strip being on the right position. Sealants needed.
Roof Panels assembly drawing

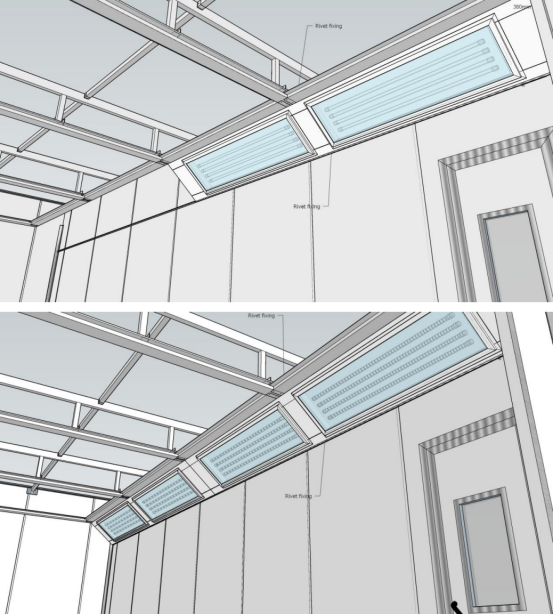

Install fixed filter frame and Electric baking lamp

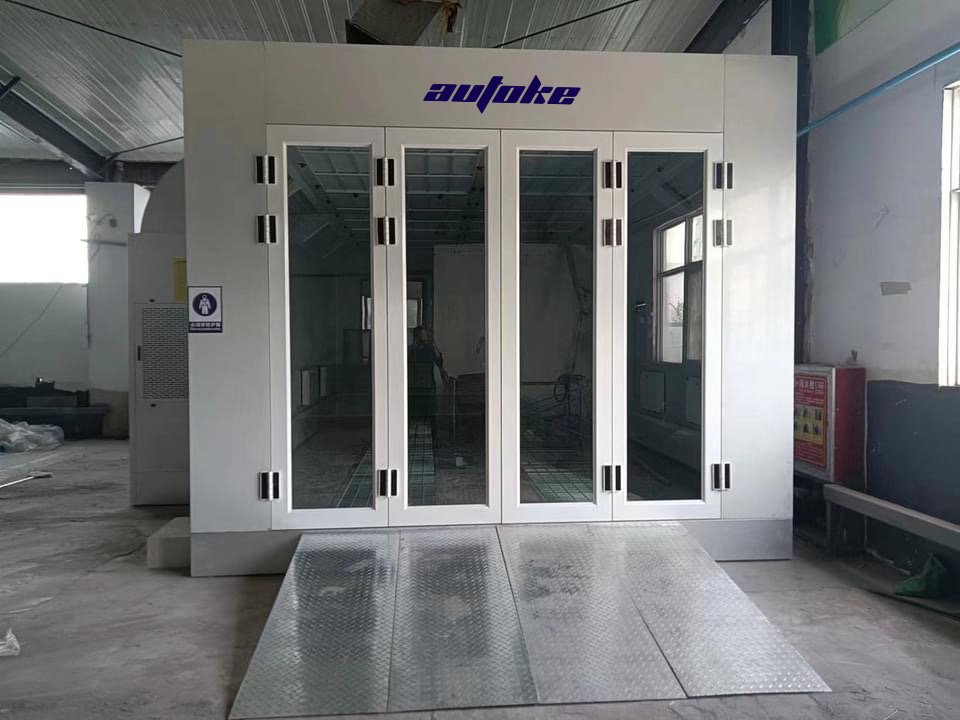

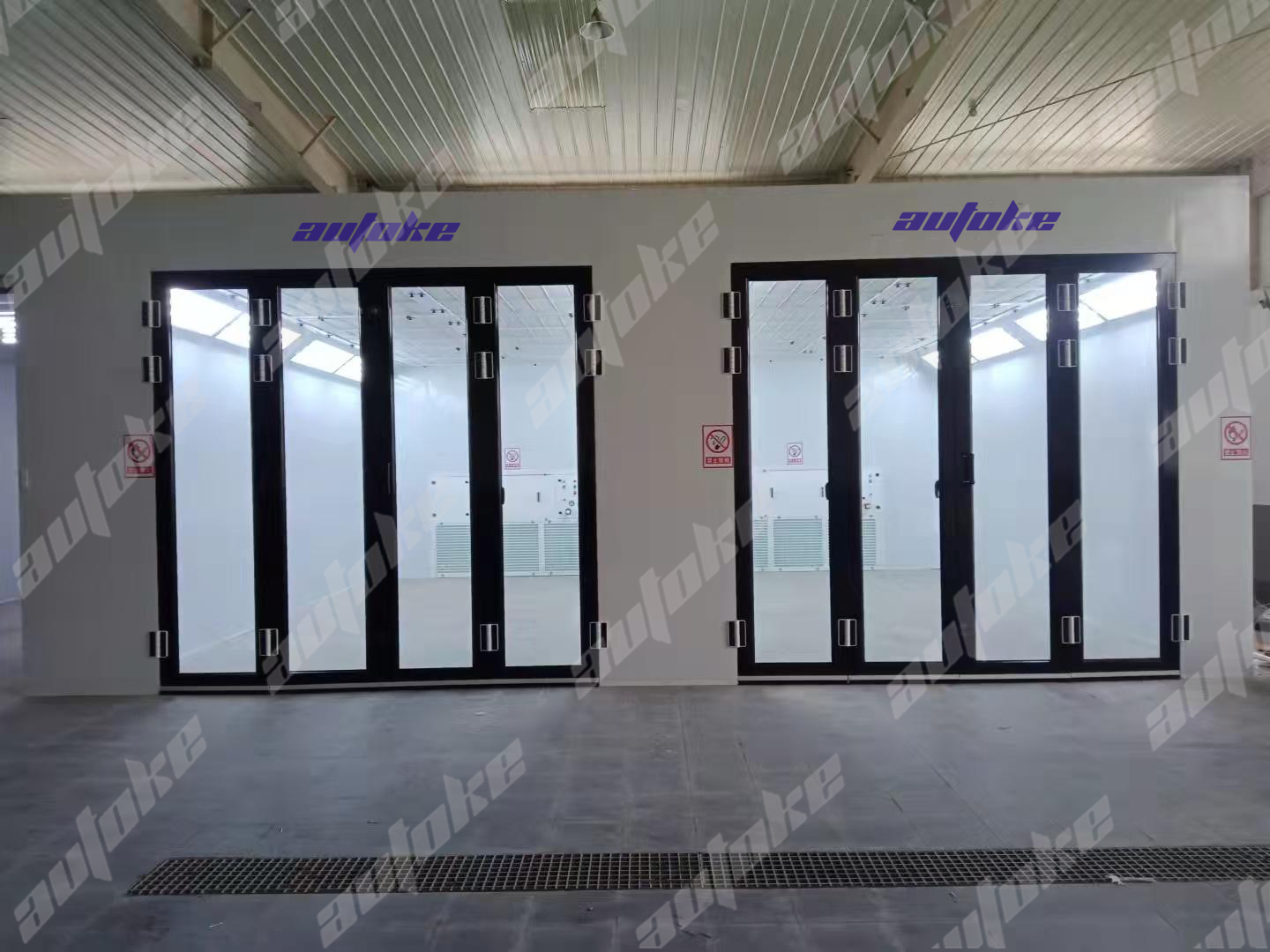

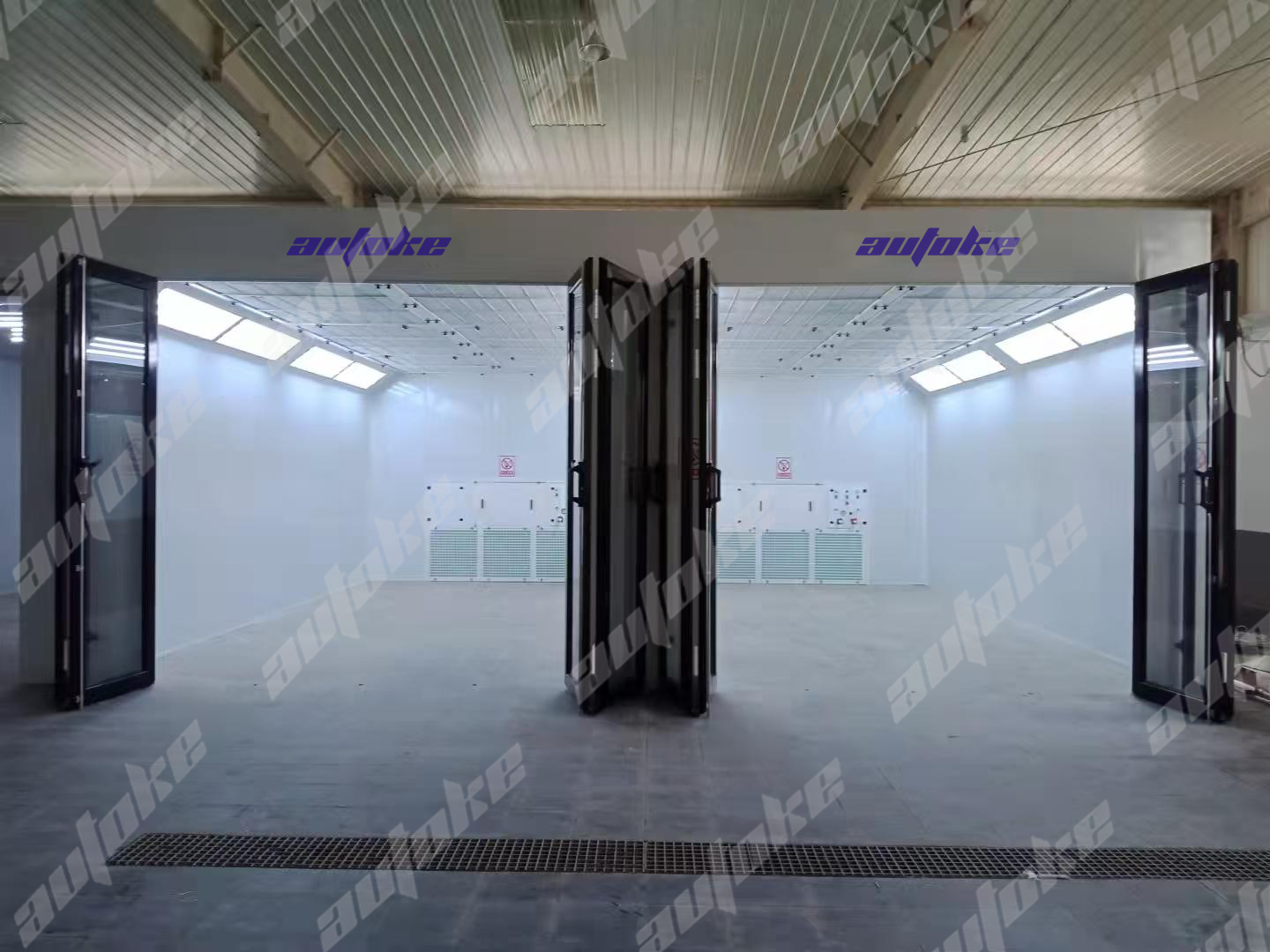

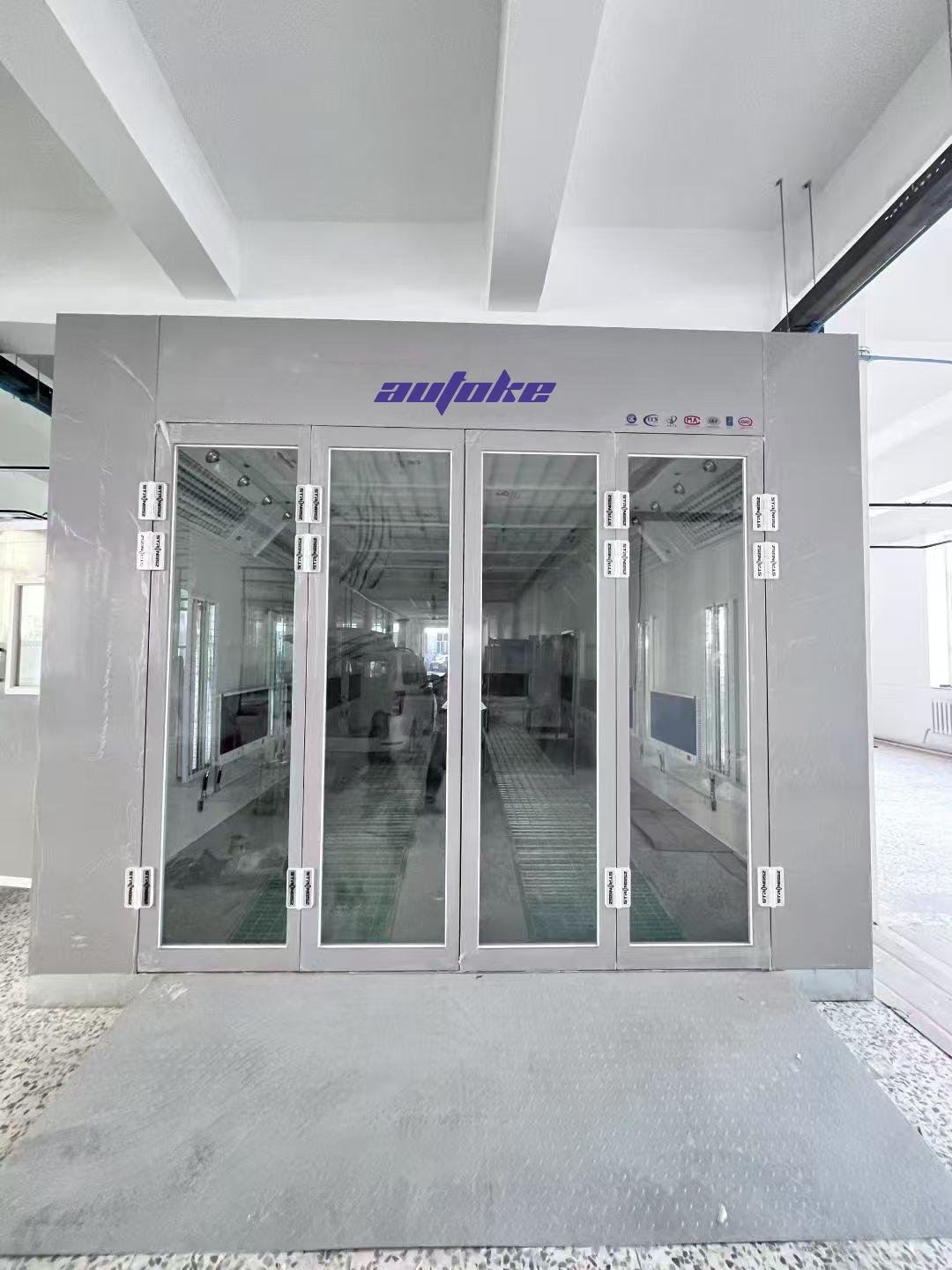

Main door installation

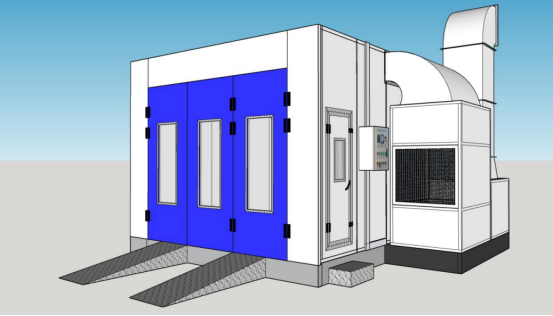

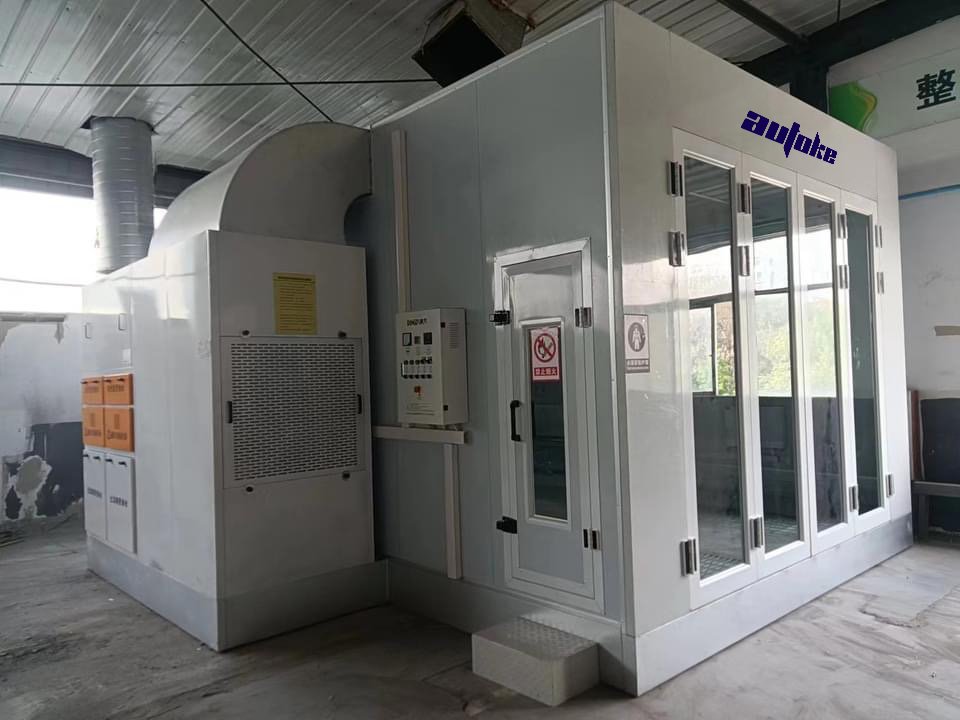

Installing electric control box and ramp and step

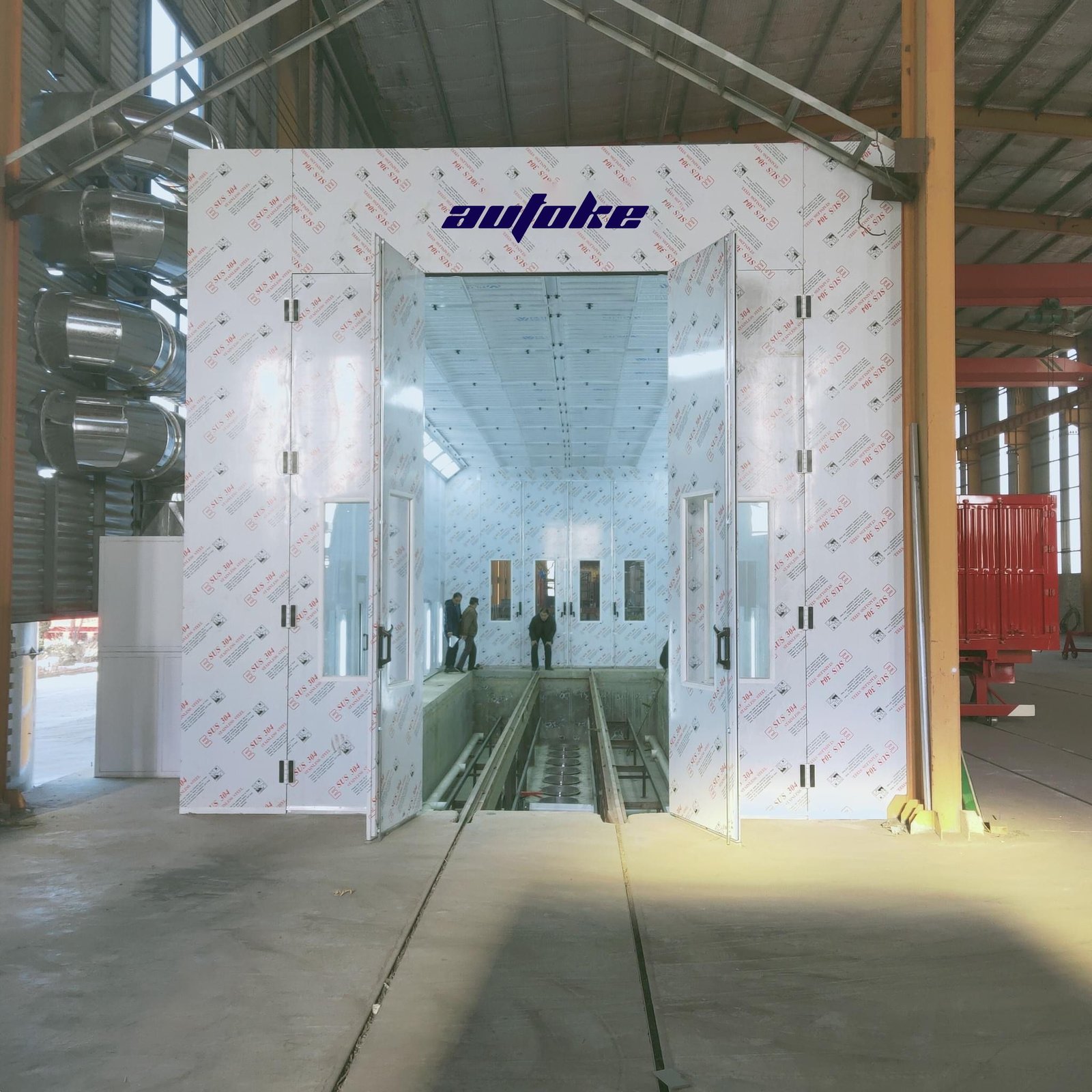

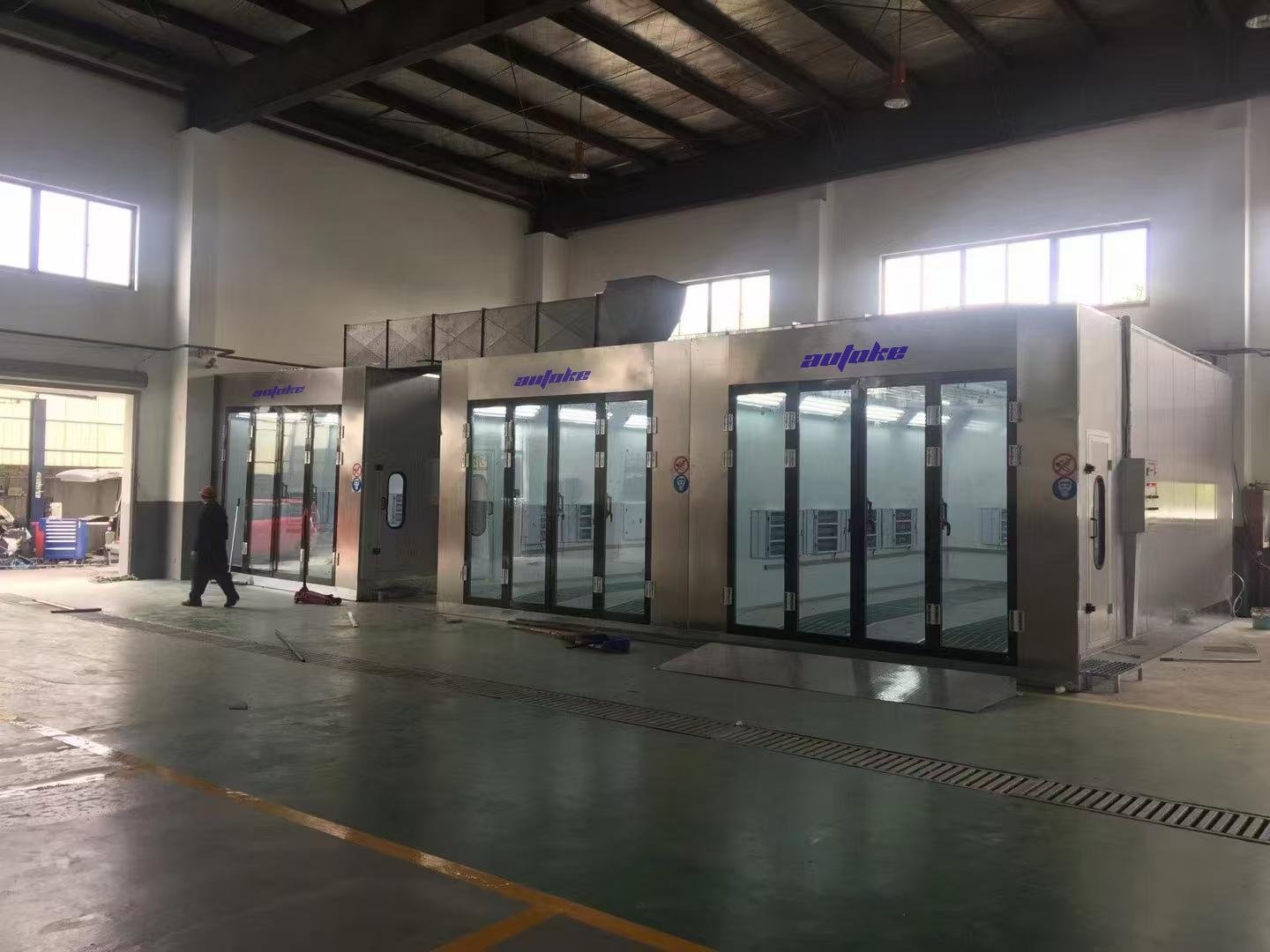

Finally
For detailed installation drawings, manuals, and technical guidance, please contact Autoke’s professional technical team. We provide complete installation support, remote guidance, and reliable after-sales service to ensure your spray booth operates safely and efficiently.
